Determining
the critical path – step 2: The backward pass
The next step is to calculate the latest date you can reach each node
and still finish on time. We work backward from the last node, starting
from the last finish date we reached from the forward pass. Then we subtract
the duration of activities to determine the latest date we can reach
each preceding node and still finish the project by the same date. Mark
the number of days on the bottom of the node.

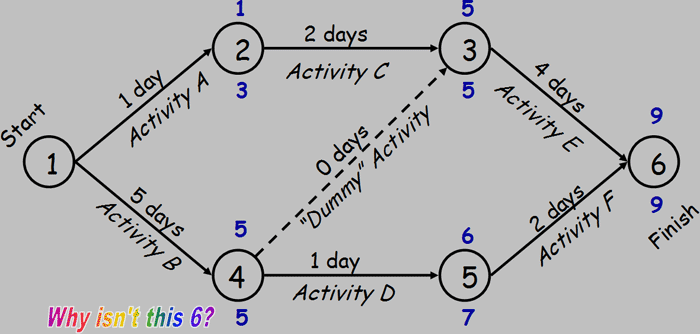

Click the image above to hear an explanation.
|
